2Ways output

working frequency : 698-2700MHZ
resistance : 50 ohm
Insertion loss : <3.5DB
size ： 88 91 30mm
maximum power : 50W
Joint type  :N male
Amplitude balance (dB) :  ≤ 0.3
Phase balance degree :  (°) ≤ 5

Isolation degree (dB) :  ≤ 20
VSWR ：< 1: 1.4
weight : 0.18KG

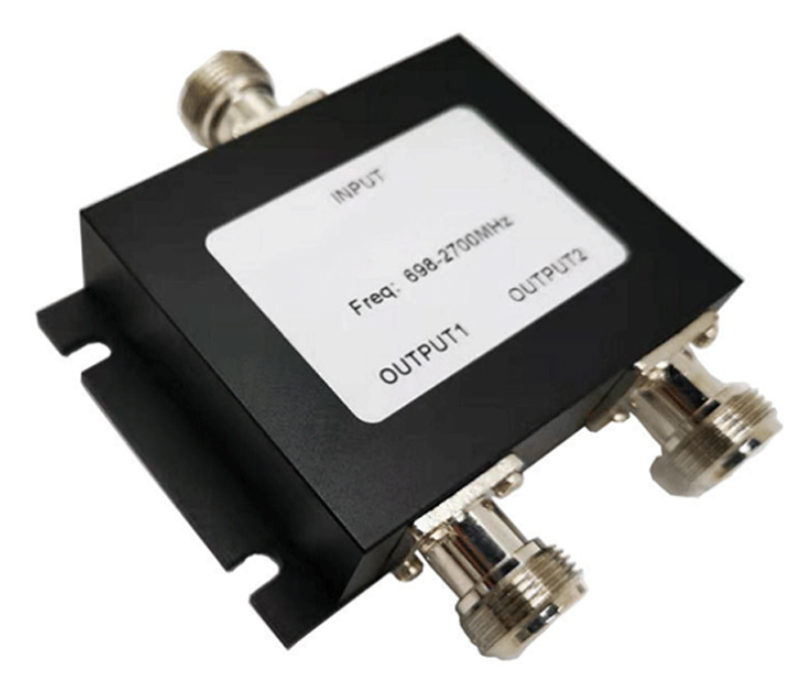

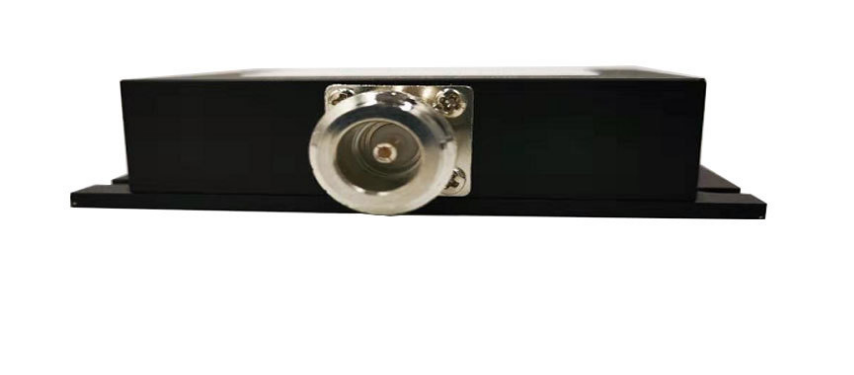

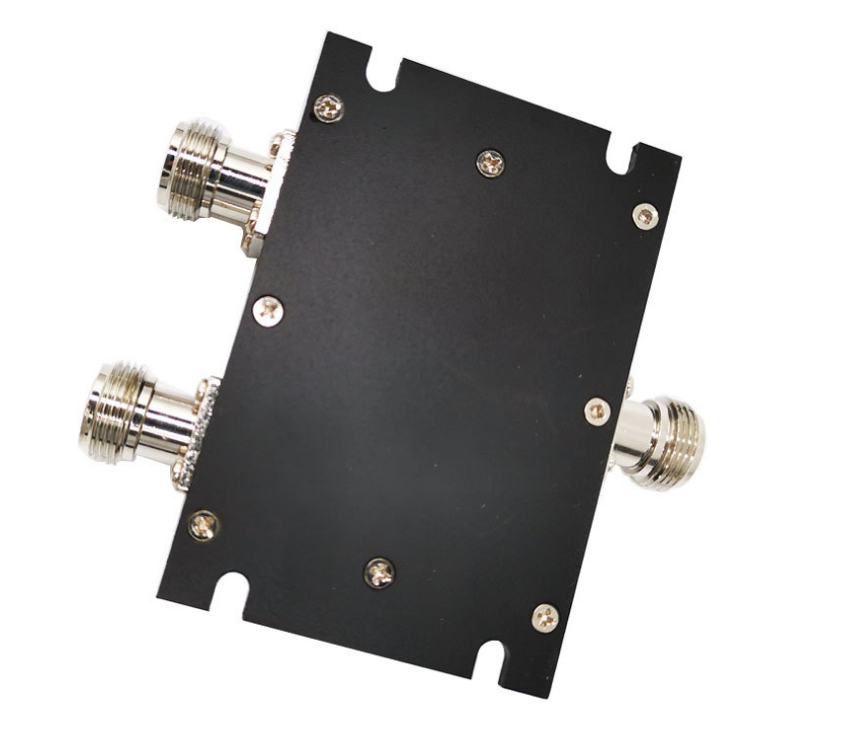

This series of microstrip power splitters have the characteristics of wide frequency band, low insertion loss, and good standing wave ratio. They are suitable for indoor coverage engineering of most mobile communication systems such as LTE 700,CDMA, GSM, DCS, PHS, 3G,4G  WLAN, LTE 2600MHZ ,etc., and are used for equal power distribution. The isolation degree of this series of power distributors at useful frequency points is greater than 25dB, thus greatly reducing mutual interference between adjacent areas and optimizing indoor coverage engineering.
