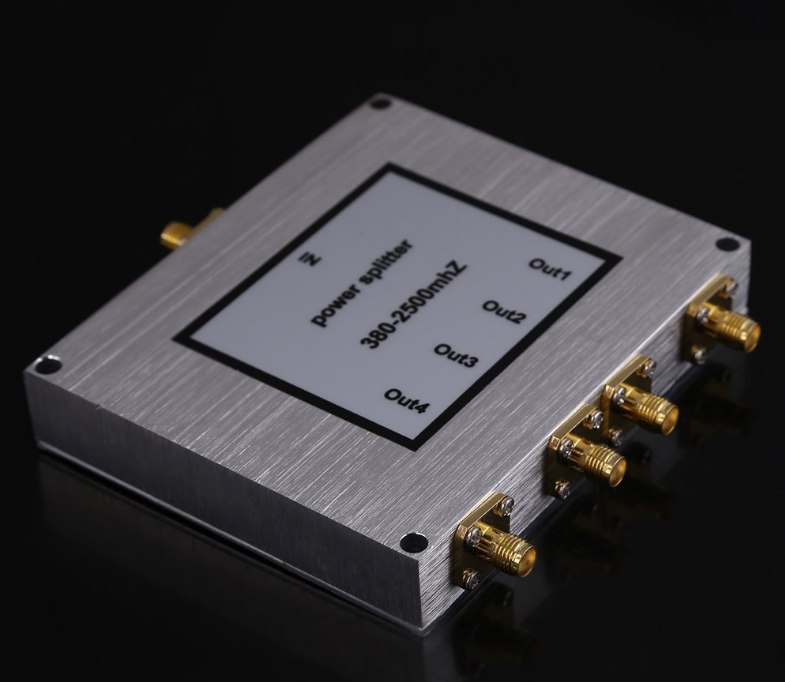

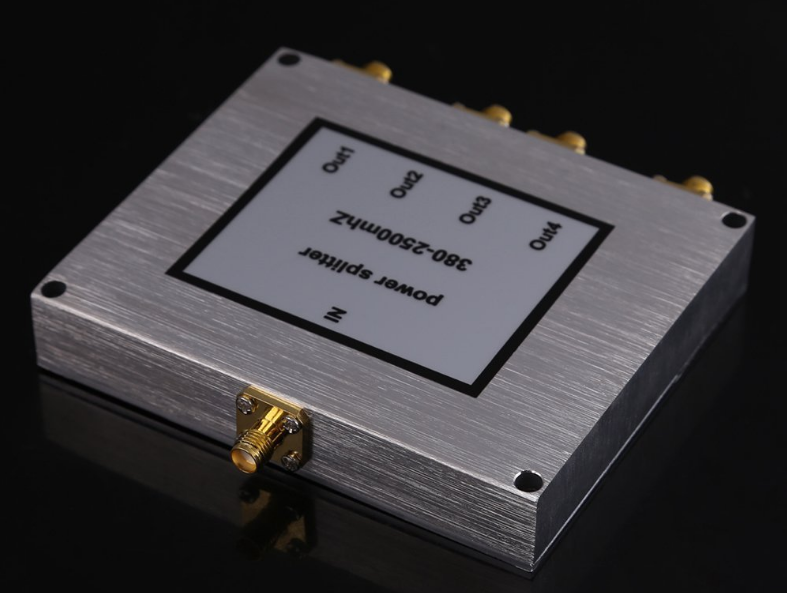

4Ways output

working frequency : 380-2500MHZ
resistance : 50 ohm
Insertion loss : <3.5DB
size 96*99*17mm
maximum power : 50W

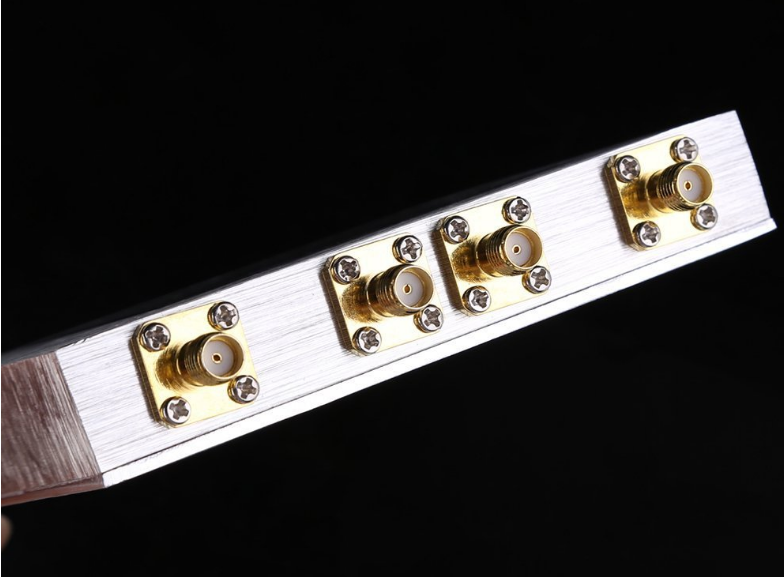

Joint type  :SMA female
Amplitude balance (dB) :  ≤ 0.3
Phase balance degree :  (°) ≤ 5

Isolation degree (dB) :  ≤ 20
VSWR ：< 1: 1.4
weight : 0.25KG

.

They are suitable for indoor coverage engineering of most mobile communication systems such as CDMA, GSM, DCS, PHS, 3G, WLAN, etc., and are used for equal power distribution. The isolation degree of this series of power distributors at useful frequency points is greater than 25dB, thus greatly reducing mutual interference between adjacent areas and optimizing indoor coverage engineering.

.

.
