4Ways output

Working frequency:  380-2500MHz
Insertion loss : ≤ 3.4dB
Standing wave ratio: ≤ 1.3
Power capacity: 50W
Joint type: N-K
Environmental temperature: -30~55 ℃
dimensions: 113*117*34cm

weight :  0.34kgs

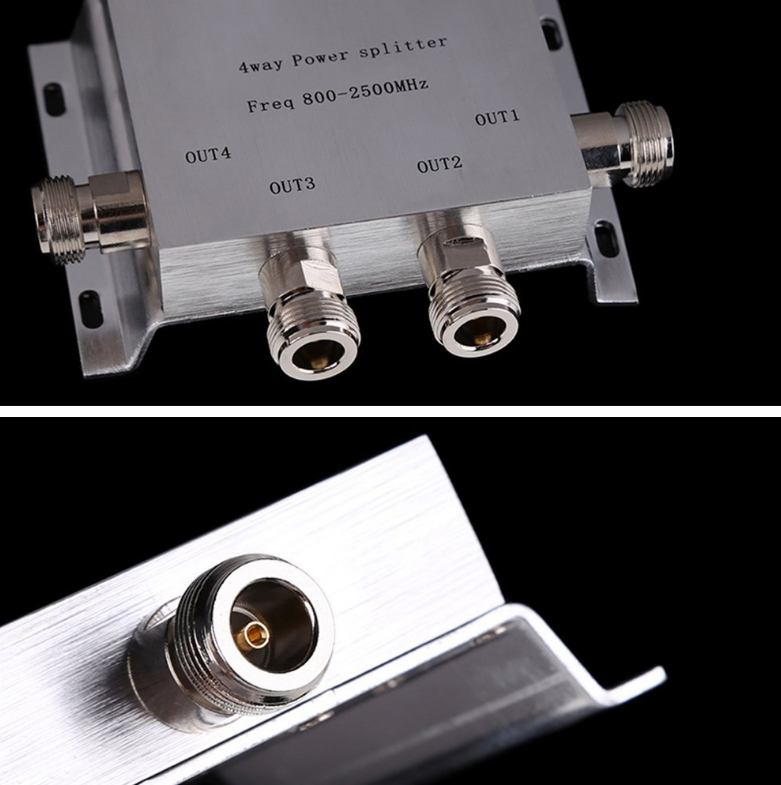

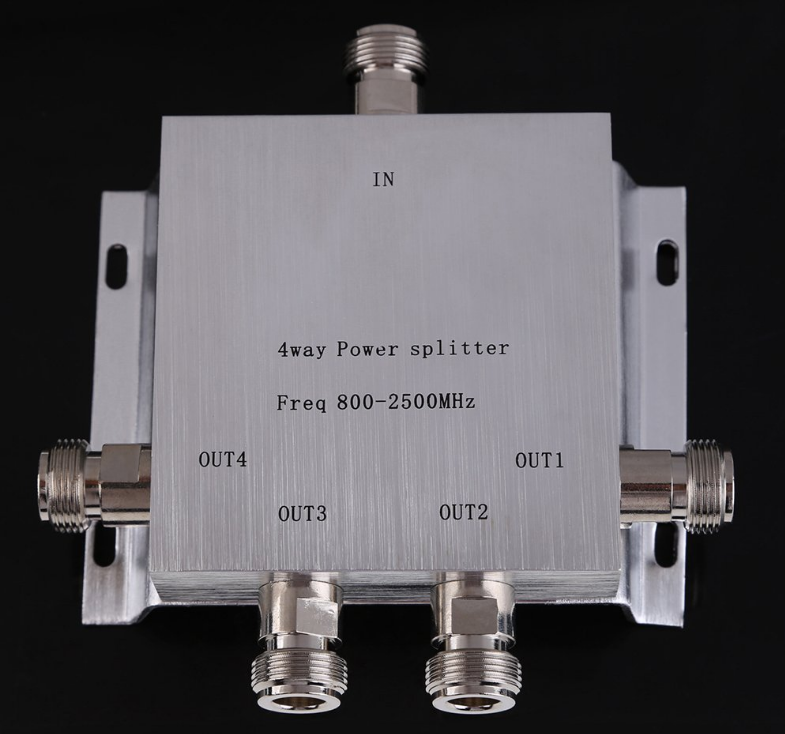

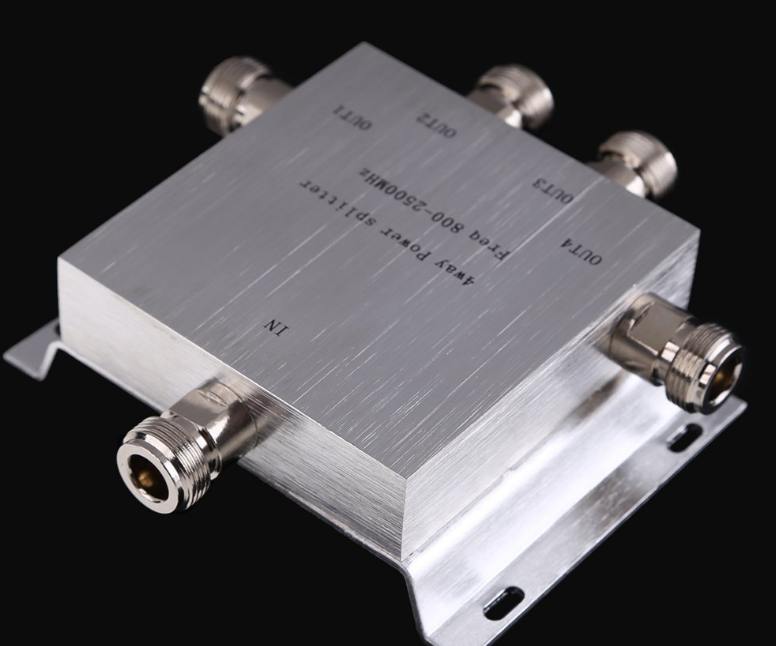

This series of microstrip power splitters have the characteristics of wide frequency band, low insertion loss, and good standing wave ratio. They are suitable for indoor coverage engineering of most mobile communication systems such as CDMA, GSM, DCS, PHS, 3G, WLAN, etc., and are used for equal power distribution. The isolation degree of this series of power distributors at useful frequency points is greater than 25dB, thus greatly reducing mutual interference between adjacent areas and optimizing indoor coverage engineering.
