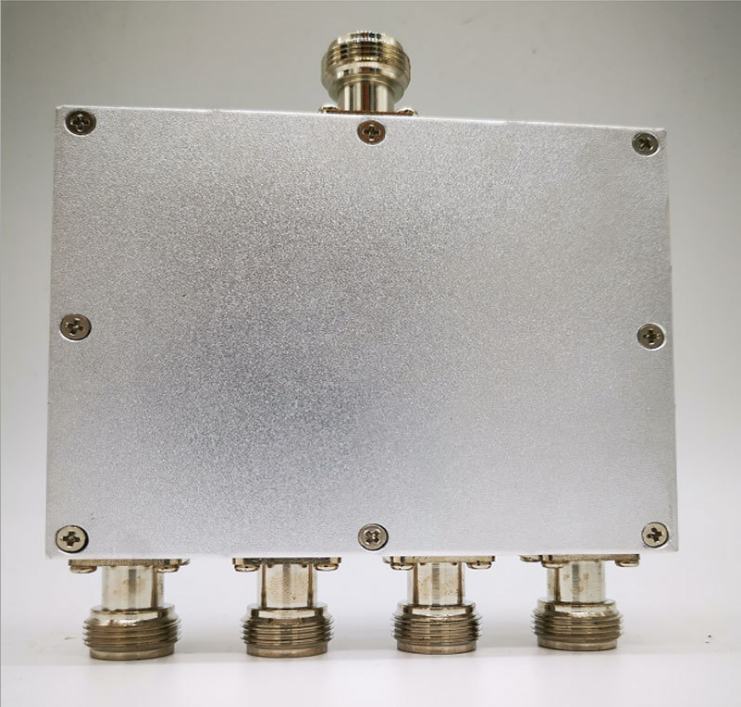

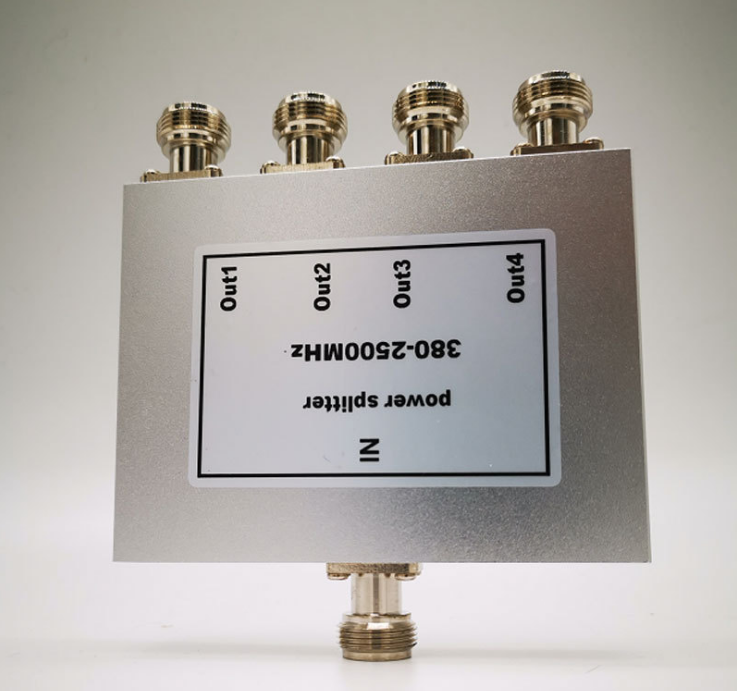

4Ways output

Working frequency:
380-2500MHz

Insertion loss:
divider 1 : ≤ 3.4dB
divider 2 : ≤ 5.3dB
divider 3 : ≤ 6.6dB
Standing wave ratio: ≤ 1.3
Power capacity: 50W
Joint type: N-K
Environmental temperature: -30~55 ℃
dimensions: length 12cm * width 10cm * height 2cm

weight :  0.5kgs

This series of microstrip power splitters have the characteristics of wide frequency band, low insertion loss, and good standing wave ratio. They are suitable for indoor coverage engineering of most mobile communication systems such as CDMA, GSM, DCS, PHS, 3G, WLAN, etc., and are used for equal power distribution. The isolation degree of this series of power distributors at useful frequency points is greater than 25dB, thus greatly reducing mutual interference between adjacent areas and optimizing indoor coverage engineering.
