This is a handheld drone detector take low power consumption digital simulate mixd technology and advanced manage power technology which controlled gain with powerful antanna.it can exactly send shockwarning and less mistakes under
complex electromagnetic wave environment when defense civilian drone like four
rotor,fixed wing,Diy,Fpv.
Performance:Warning sensitivity、Low false alarm rate,Tiny,well-protected
Production application:Need cooperate with portable Antidrone device,when drone noticed not timely
Aim drone:DJI、TONG DAO , four rotor、fixed wing、FPV
Main sepcification
Working band |
400-1500MHz |
2200-2500MHz |
|
5100-5900MHz |
|
Cell Capacity |
11.1V4Ah |
Working distance |
1.5-2km |
Detect range |
360° |
Working Angle |
20° |
Charge |
Adapter charger12.6V |

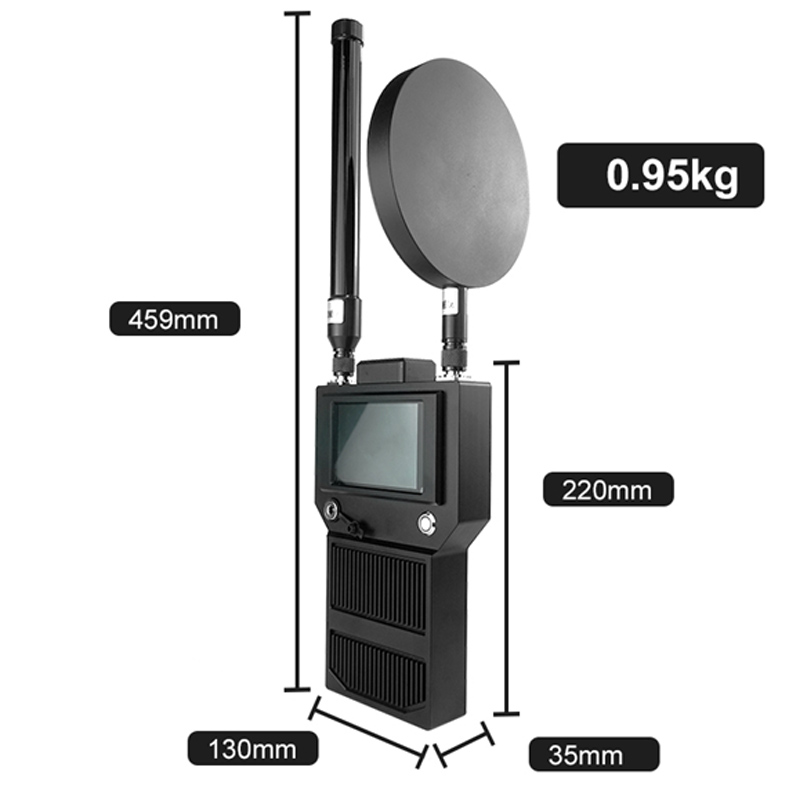

size |
220*130*35mm(Exclude antenna) |
Antenna1 |
2.4G 5.8G dual band omni fiberglass |
Antenna2 |
Omni fiberglass antenna 100-6000MHz |
Antenna3 |
Directional Antennna 100-6000MHz |
Detector weight |
750g(Exclude antenna) |
weight |
950g(Enclude antenna) |
|
Usage :
1. press to turn on detector ;

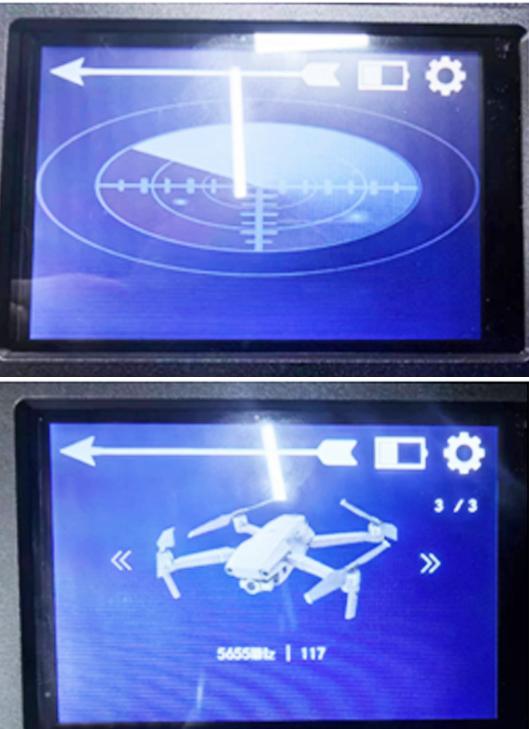

2. When a drone is detected, the device will vibrate, display drone images on the screen, and display drone frequency bands.

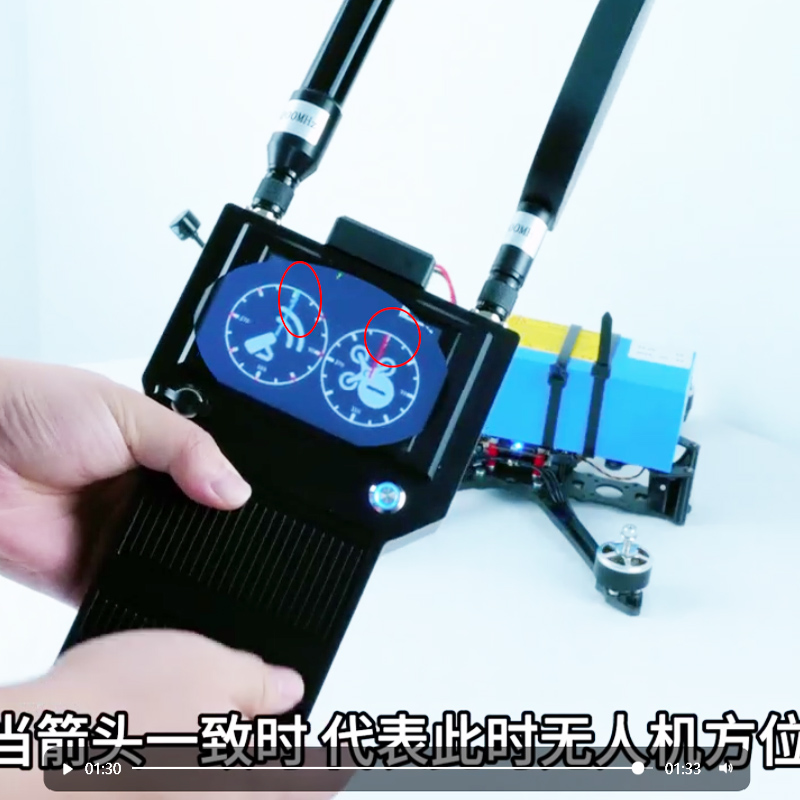

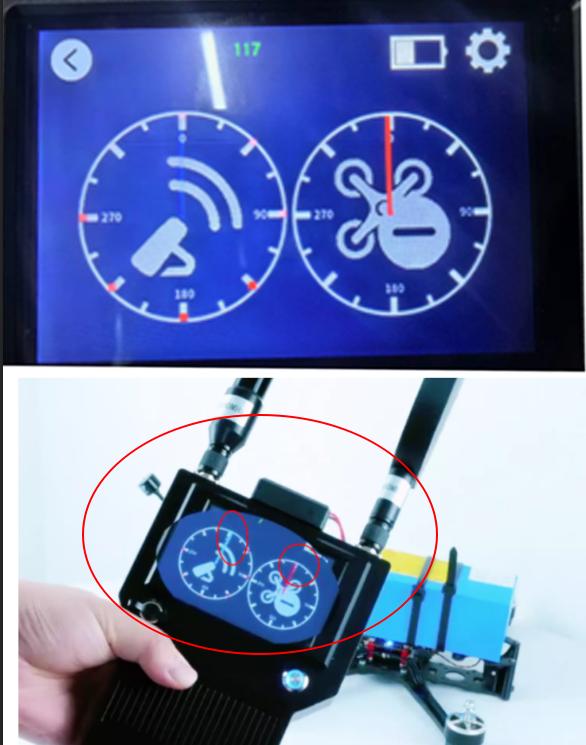

3. Click on the drone image to enter the lateral interface. Firstly, rotate 360 ° in place to detect the direction of the drone. When the arrows on both circles are consistent, it represents the current orientation of the drone
Shipping content :
Detector |
1 |
Omniglassfiber antenna2.4G /5.8G |
1 |
Fiberglass Omni Antenna 100-6000MHz |
1 |
Directional Antennna 100-6000MHz |
1 |
Charger |
1 |
