1. Shielded output high power 130W
2. About 1000-1500 meters long distance
3. Multi band 8-channel countermeasures against more drone models
4. Highly integrated shielding module, stable output, precise countermeasures

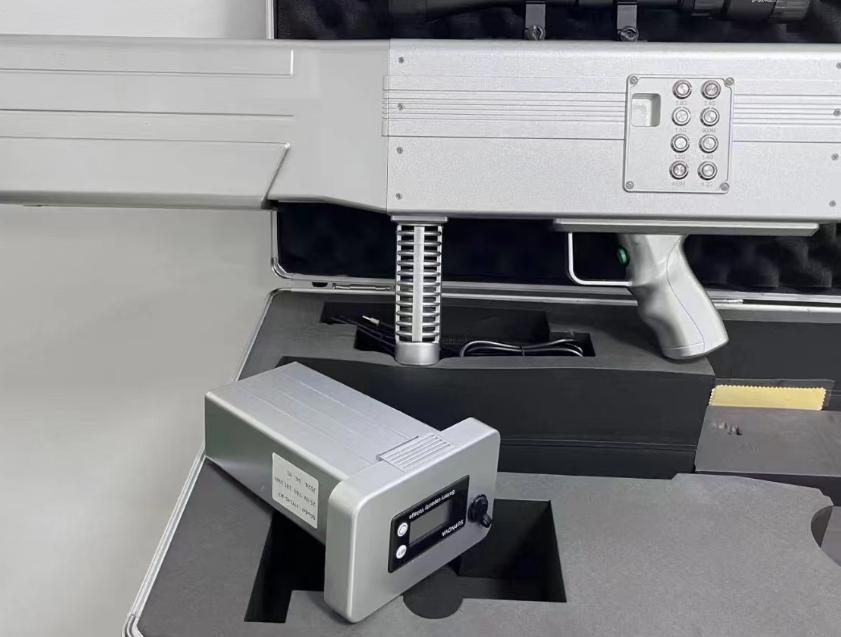

5. Portable and lightweight model,
6. Replaceable battery with a range of 40-50 minutes
7. LCD screen displays remaining battery and voltage
8. Unique heat dissipation structure design
9. Waterproof, insulated, and fall resistant
CH1: 410-485 MHz ( 433 MHz) 10W |
CH2: 840-920 MHz ( 900MHz) 10W |
CH3: 1100-1280 MHz ( 1.2 GHz) 10W |
CH4: 1559-1620 MHz (1.5 GHz) 20W |
CH5: 1370-1390 MHz (2.4 GHz) 10W |
CH6: 2400-2500 MHz (2.4 GHz) 30W |
CH7: 5150-5350 MHz (2.4 GHz) 20W |
CH8: 5725-5850 MHz ( 5.8 GHz) 20W |
AC100-240V-DC24V
40-50minutes
Operating instructions
1. Press the power switch and LCD screen to check the remaining battery level, ensuring that the device is fully charged before use
2. The LCD screen can be turned off when not in use to save power
3. Select the corresponding shielding frequency band and align it with the direction of the drone
4. The countermeasure effect of drones will manifest as forced landing or return depending on different operating modes
Below frequency and wireless are available :
LoJack 173MHz, VHF, UHF, 433MHz,315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA,UMTS,3G,4G,LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1,GPS L2, Galileo, Compass, Glonass, WIFI, Bluetooth, Spy camera, WIMAX, UAV, Drone, 5.8G
