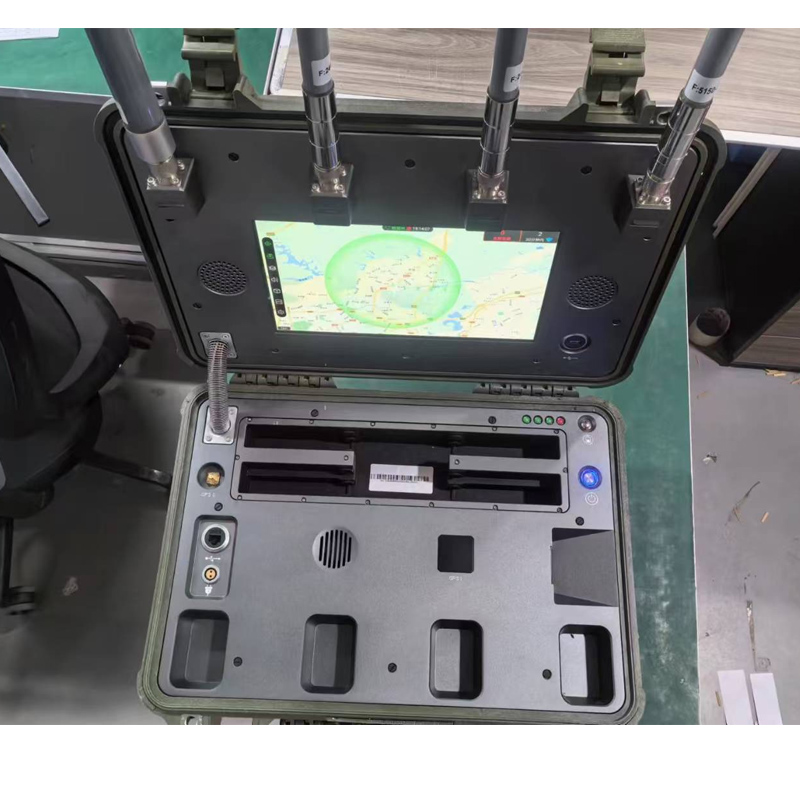

Drone detection and positioning all in one Integrated equipment

performance index
Frequency band support : 900MHz, 1.4g  2.4g 5.2g 5.8g
Detection distance : ≤10km
positioning accuracy  : ≤10m
Positioning distance : 5km
Reconnaissance airspace :  360 ° full air
Real time detection quantity :  ≥20
Trajectory tracking :  ten
Battery life :  ≤13
Positioning refresh time : ≤2

Host size : 470mm × 357mm × 176mm (length * width * thickness)
Protection level :IP6
Host weight : 13kg

Passive detection: It only passively receives and does not emit any electromagnetic signals, and can detect and identify the serial number of unmanned aircraft bodies;
Single station positioning: A single station can achieve unmanned aerial vehicle target indication;

Accurate identification: It can accurately identify different drones with the same serial number, brand, model, and frequency band;
Black and White List: One click marking of the black and white list is possible, and the whitelist drone will not sound an alarm;
Detecting models: Supports DJI's full range, mainstream brands in the market, WiFi machines, and DIY drones covering over 98% of models on the market;
Positioning model: Supports DJI's full range of drone models from mainstream brands in the market;
Pilot positioning: can accurately determine the position of the drone/remote control and indicate the direction;

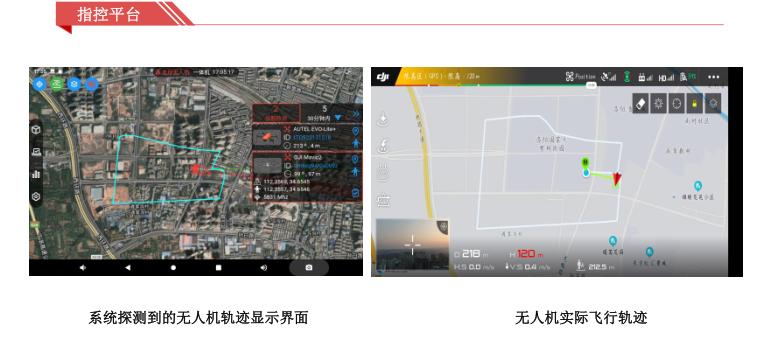

Trajectory tracking: Equipped with multi-target trajectory tracking function, it can display the flight trajectories of multiple drones in different colors when detected simultaneously
