For Analogue Camera only .

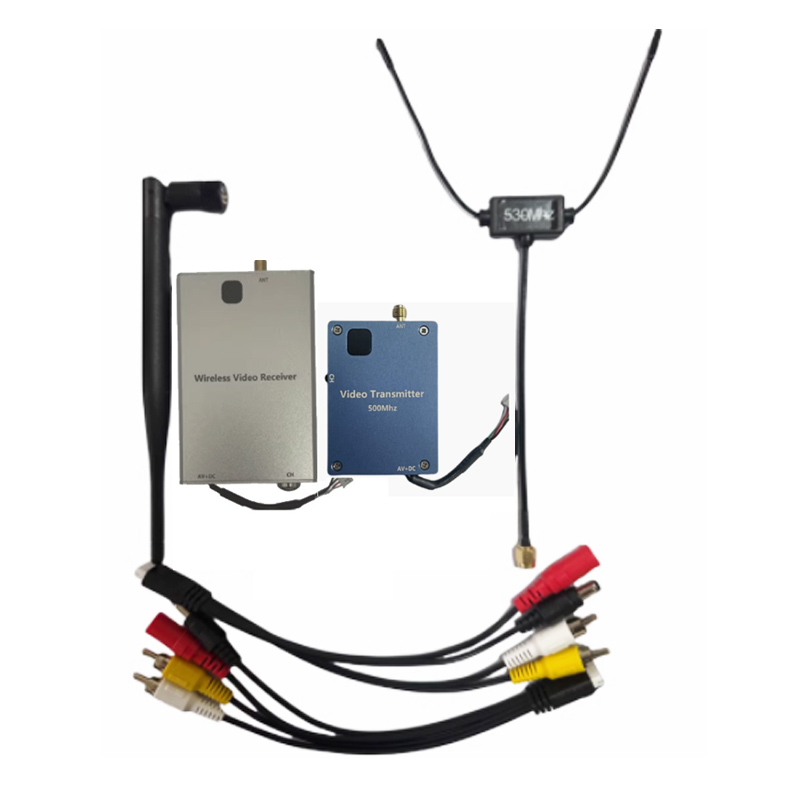

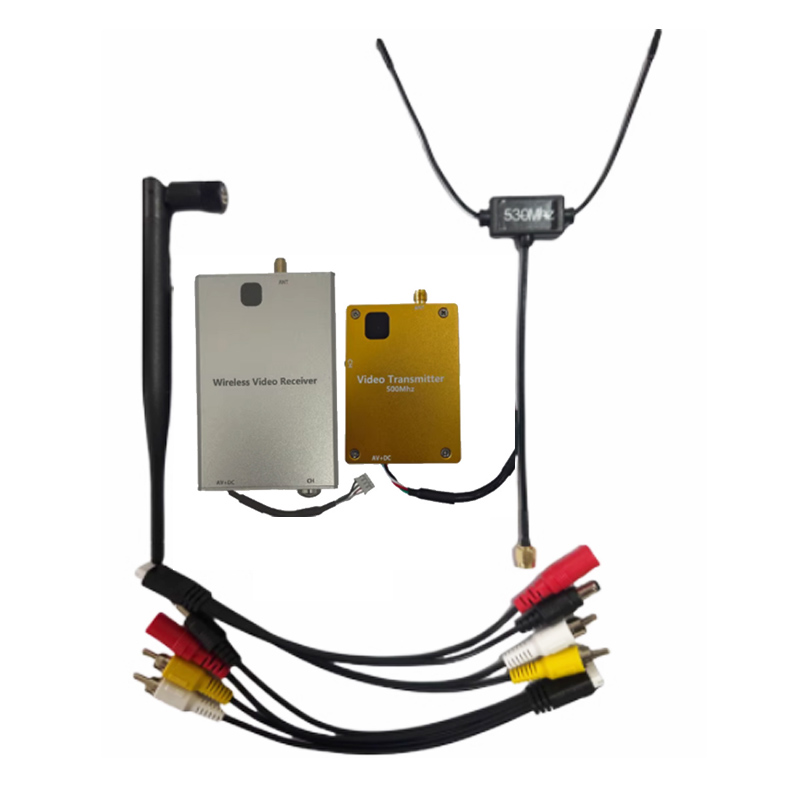

his video transmitter is equipped with a transmission power of 2/4/5W , making it ideal for use in unmanned aerial vehicles (UAVs) , CCTV and other remote applications.
Analog video transmitters are the perfect choice for transmitting video signals for monitoring, security, or entertainment purposes. Its compact and lightweight design makes it easy to carry and install
This device is designed to operate under extreme temperature conditions, ranging from -10 ℃ to+50 ℃, ensuring reliable and consistent operation in any environment.
|
Transmitter : |
|
Voltage : DC 12V ,Current 700mA |
|
Modulation FM |
|
Channel : 8 |
|
Frequency : 300Mhz~1020Mhz |
|
1. 300Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) (customized) |
|
2. 400Mhz: (340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz, 460Mhz, 480Mhz) |
|
3. 500Mhz: (490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz, 620Mhz) |
|
4. 600Mhz: (580Mhz, 600Mhz, 620Mhz, 640Mhz, 60Mhz, 680Mhz, 700Mhz, 720Mhz) |
|
5. 700Mhz: (680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz) |
|
6. 800Mhz: (780Mhz, 800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz) |
|
7. 900Mhz: (880Mhz, 900Mhz, 920Mhz, 940Mhz, 960Mhz, 980Mhz, 1000Mhz, 1020Mhz) |
|
Power 2/4/5 watts |
|
Video output ： 1 Vp-p (FM) |
|
Audio output ： none function |
|
Temperature ： -10 ℃~+50 ℃ |
|
Antenna Port ： SMA |
|
Weight of transmitter ： 40g |
|
Size ： 72 * 46 * 17mm |
|
Receiver : |
|
Voltage DC 12V |
|
Receiving sensitivity : -77DB |
|
Modulation : FM |
|
Number of channels: 8 channels |
|
Frequency : 300Mhz~1020Mhz |
|
1. 300Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) (customized) |
|
2. 400Mhz: (340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz, 460Mhz, 480Mhz) |
|
3. 500Mhz: (490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz, 620Mhz) |
|
4. 600Mhz: (580Mhz, 600Mhz, 620Mhz, 640Mhz, 60Mhz, 680Mhz, 700Mhz, 720Mhz) |
|
5. 700Mhz: (680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz) |
|
6. 800Mhz: (780Mhz, 800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz) |
|
7. 900Mhz: (880Mhz, 900Mhz, 920Mhz, 940Mhz, 960Mhz, 980Mhz, 1000Mhz, 1020Mhz) |
|
Video output ： 1 Vp-p (FM) |
|
Audio output ： none function |
|
Temperature ： -10 ℃~+50 ℃ |
|
Antenna Port ： SMA |
|
Weight of transmitter ： 19g |
|
Size ： 75 * 45 * 20mm |
