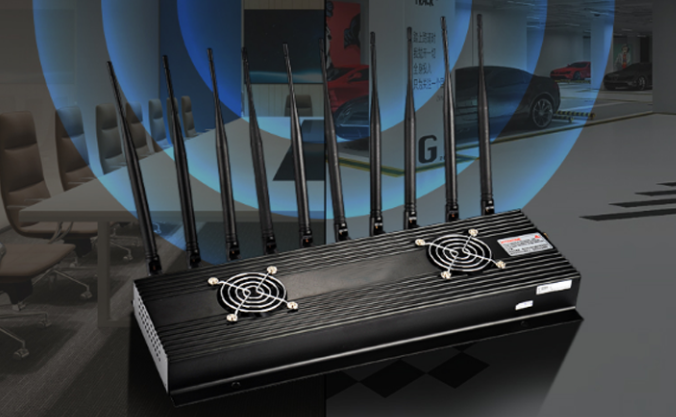

50W 10CH 3G 4G 5G GPS Jammer

Model：AB-PB-F10

BASIC INFO

Channels : 10
Output power : 5W each channel ,total 50W emission
Coverage : 50-100 sq meters ( covering distance ,depends on the area’s signal strength ), radius 5-20meters
Body Size : 370*110*33mm
Packing size : 450*240*85mm
Antenna size : 210mm ( length )
Overall weight : 3Kg
ambient temperature : -40~55C
relative humidity : 35~85%
Power consumption : 60W
Power input : AC160V~240V
Power output : DC 12V/5A
Installation height : 1.8m~2.5m
Installation environment : indoor
Shell material : Metal aluminum profiles

Channel by default :

CDMA/GSM&LORA	851-894 /900-960MHz	3W
DCS/PCS	1805-1880/1920-1990MHz	2W
3G	2110-2180MHz	2W
4GLTE Low	698-798/738-821MHz	2W
4GLTE High	2496-2690/2570-2690MHz	1.5W
GPS	1570--1615MHz	2W
5G	3400-3600MHz	2W
5GWIFI	5725-5850MHz	2W
WIFI	2400-2485MHz	3W
4G1700	1710-1780MHz	2W

OR :

Frequency 1： 4G 700mHZ ( 720-825 MHZ )
Frequency  2： CDMA GSM 870-960MHz （2G + 4G band 5, band 6, band 8 , band 18 , band 19 ,band 26 ）
Frequency  3: DCS 1800 ( 1800-1880MHz , for 2G + 4G band 3, band 9 )
Frequency  4:   3G 2100 (2100-2170MHZ , for 3G + 4G band 4, band 10, ) ,
Frequency  5:   5G 3400mHZ
Frequency  6:   5.8G
Frequency  7:   PCS 1900 ( 1900-2000Mhz )
Frequency  8:   GPS 1500 ( 1560-1620mHZ for GPS L1,BEIDOU B1 , GLONASS G1 ,GALILEO E1  )

Frequency 9: 4G 2300-2400mhz ( 4G and WIFI ）
Frequency 10: 4G 2600 (2500-2700MHZ ,for 4G band 38, band 41 and wireless transmitting )
