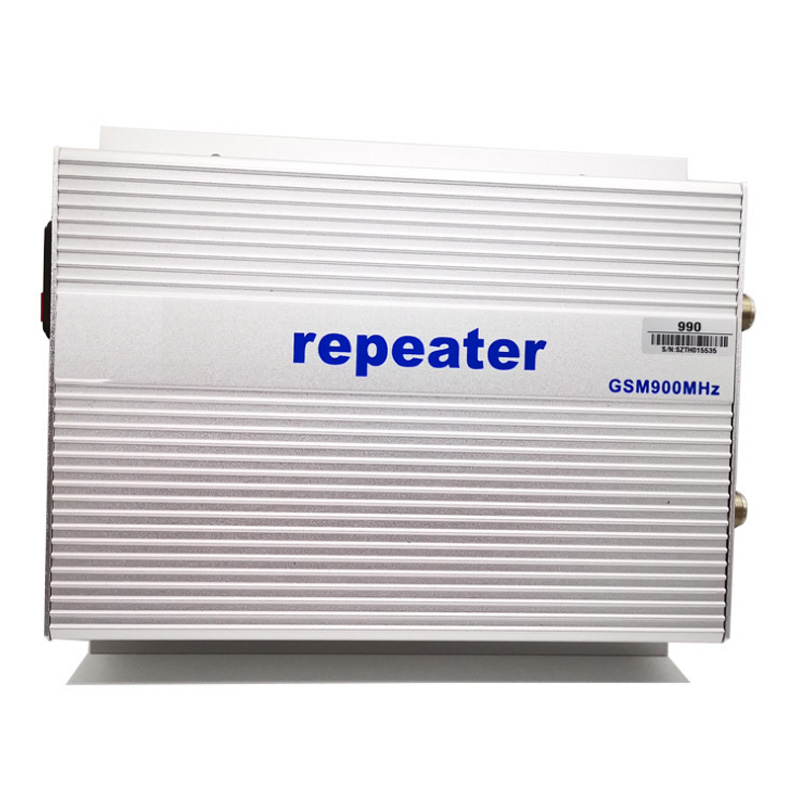

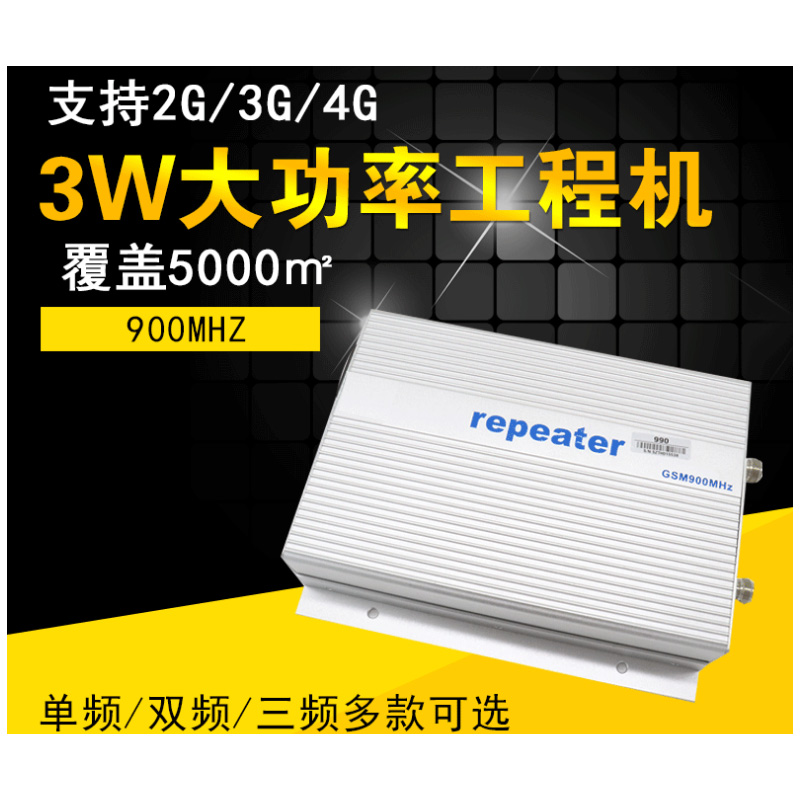

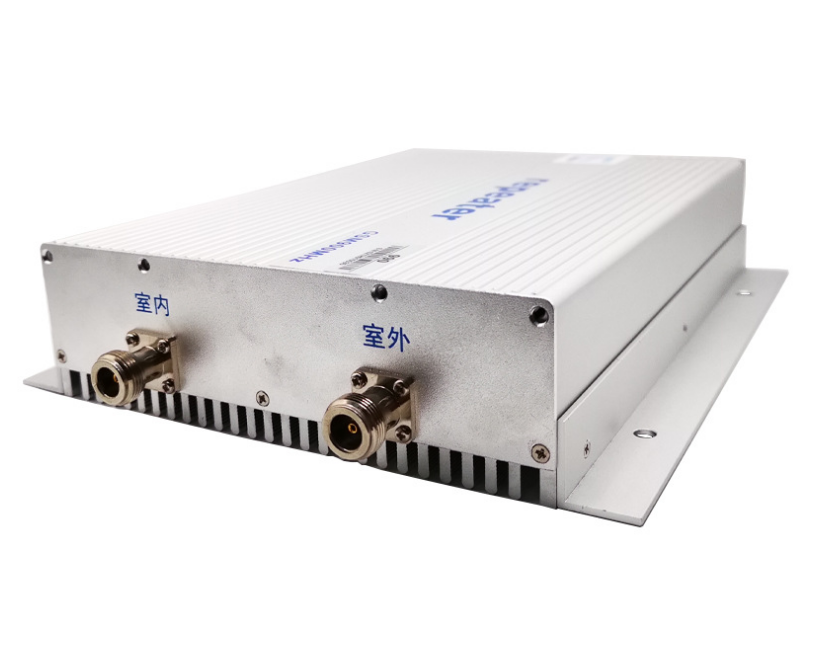

35DMB 3W GSM Repeater

  • AB-FD-990GSM
BASIC INFO

Operating voltage: AC 110V-220V automatic power adjustment


Operating frequency range:
GSM :           890MHz---915MHz(Uplink)  ;       935MHz---960MHz(Downlink )


Gain:  ≥75-80dB ( uplink ) ; ≥80-85 ( downlink )
Flatness: ≤ 3dB
Noise figure: ≤ 3dB
In wave ratio: ≤ 1.4 (V.S.W.R)
Device delay: 1μs
Spurious Radiation: ≤-39dBm
Power: 35dbm ( real dbm is at 34-34.5dbm around )
Size (H x W x D):
Netweight : 2.3kg

Cover :5000 square meters max. to cover in open air ( also it will be different according to your using condition ) ,
