BASIC INFO

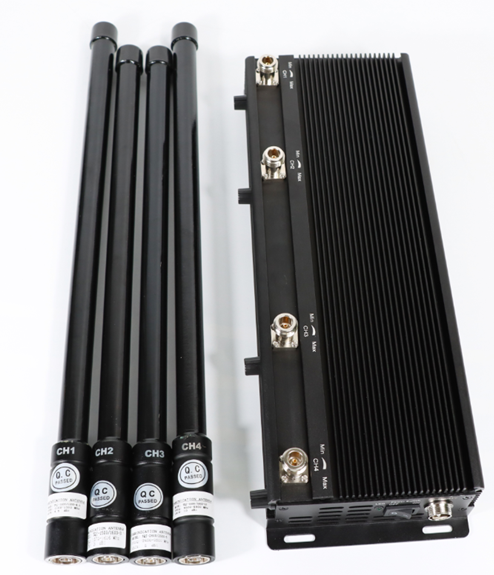

★middle power of 4 bands adjustable Desk Jammer,Have good Jamming for remote control GPS WIFI2.4G and WIFI5G of drone.
★Total output power: 30W，4W-10W each band,Jamming range up to 100m
★Can adjust output power or turn off any single band without influencing the other bands operation
★Each band PCB board is independent design with frequency source,Replace damaged parts directly,convenient maintenance
★Use External Omni-directional antennas,all the TX frequency covered down link only
★Good cooling system with 3 cooling fan outside
Notice:If you want to use in car,pls buy an inverter of DC12V/24V to AC110-240V,Power≥300Watts
| Jamming range | 10-80M @ depends on the strength signal in given area | ||
| Product Size | 385X135X55mm | Output Power | 20-30 Watt |
| Power supply | AC100-240V to DC24V Working | ||
| Cooling System | 3 Cooling fan inside | Working time | non-stopped |
| Box Size | 60x24x13cm | G.W/Set | 5kg |
frequency 1
| 315MHz | 5W |
| 430-440MHz | 5W |
| 868MHz | 10W |
| 900-930MHz | 10W |
frequency 2
| Signal system | Frequency |
| Wi-Fi Bluetooth 2.4G | 2400-2500MHz |
| Wi-Fi Bluetooth 2.4G | 2400-2500MHz |
| Wi-Fi 5.8G（4W) | 5500-5900MHz |
| Wi-Fi 5.2G（4W) | 5100-5500MHz |
frequency 3
| Signal system | Frequency |
| RC 2.4G | 2400-2500MHz |
| RC 5.8G（4W) | 5700-5900MHz |
| GPSL1/GLONASS | 1560-1610MHz |
| RC868/915 | 868-915MHz |
| GPSL2L5 ( optional ) | 1170-1280MHz |
