GNSS Antenna L1 B1 E1

GNSS Antenna L1 B1 E1

Model : GPS-BT-003
Suitable :L1 B1 E1

BASIC INFO

1575.425MHz GPS Beidou Four Star Single Frequency (GPS, Beidou, Galileo)
L1 B1 E1

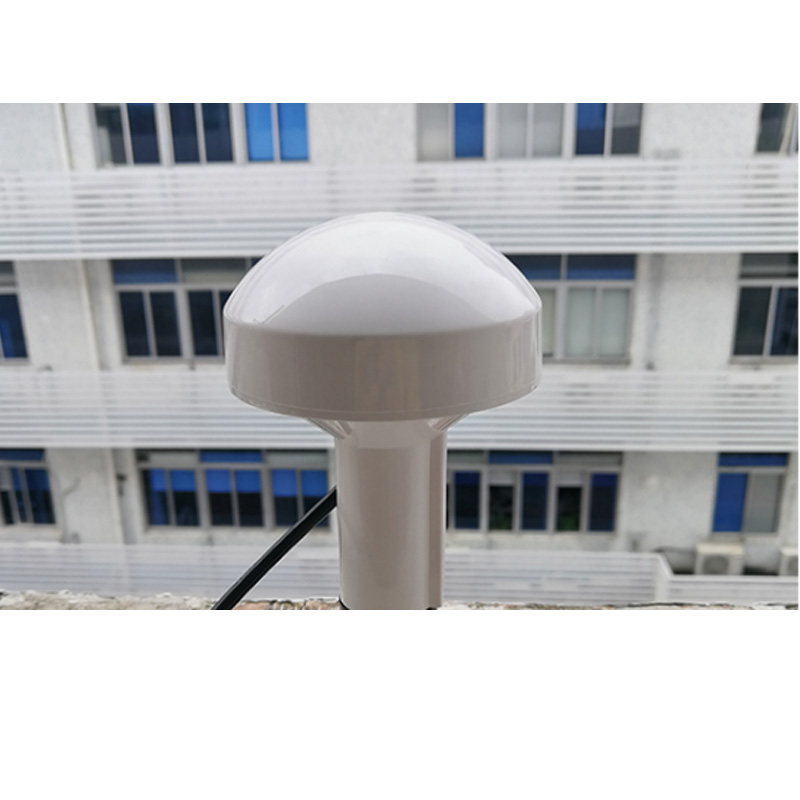

high gain GNSS Mushroom antenna
38dbi active antenna outdoor use to receive signal .

Satellite DGPS Antenna
Frequency : 1575.425MHz
Gain : ≥ 39dB,
Output Impedance: 50 Q
Standing Wave Ratio:<1.5
Polarization method: Right-handed circular polarization
Bandwidth: ± 10 MHZ
DC current: ≤ 30mA
Working voltage: 3-5 V
Cable: 0.5M
External dimensions: 96x127mm
Working temperature: -30 ° C~+85 ° C

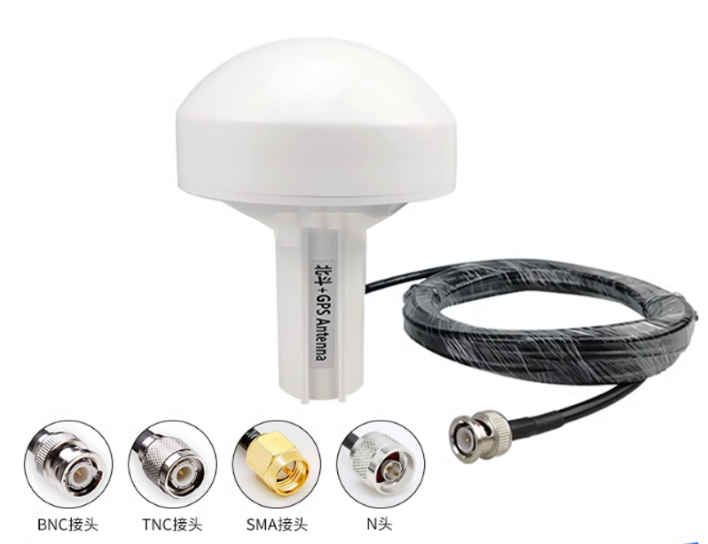

Connector model: BNC/TNC/SMA/N head (customizable connector)
Water: 100%
Weight:<300g
