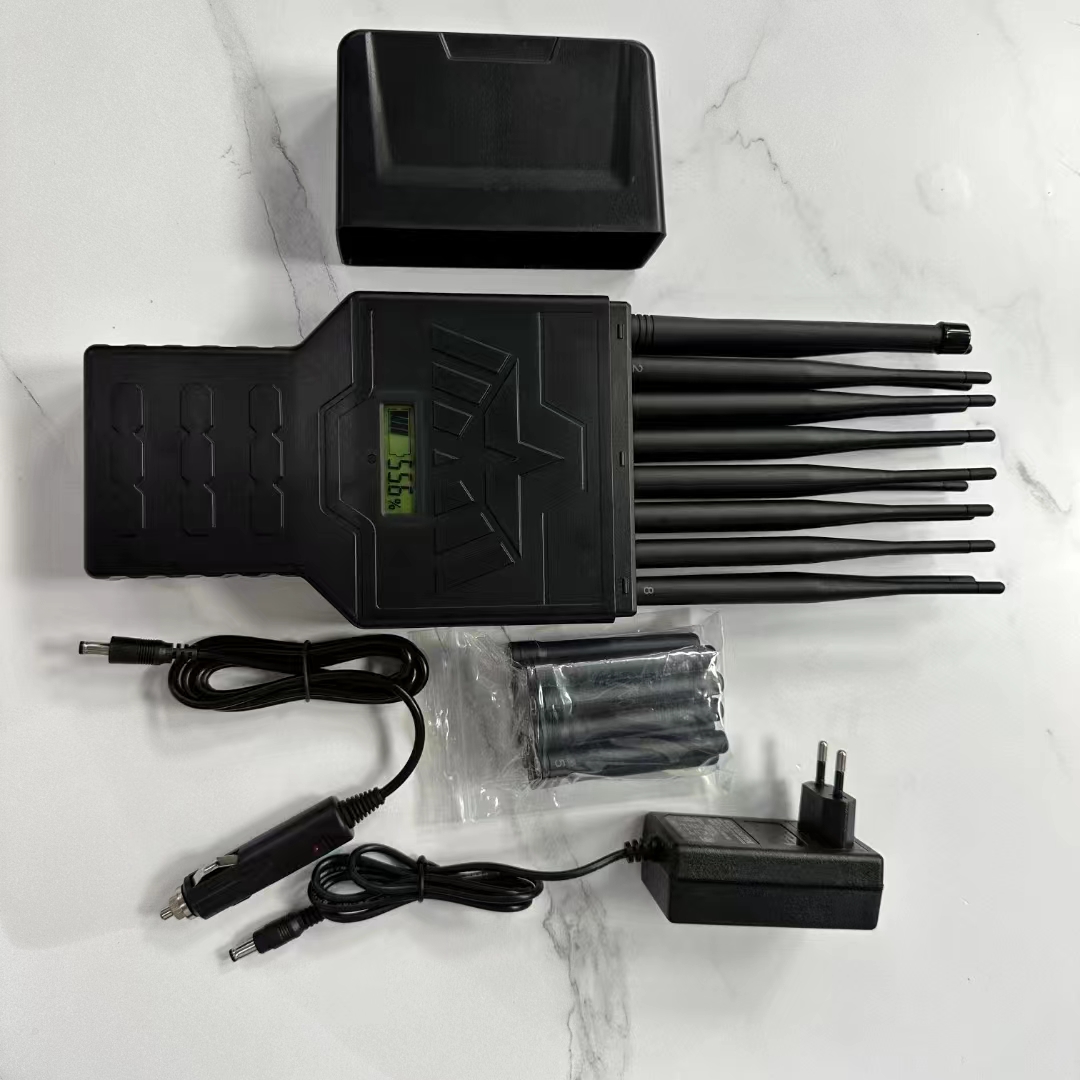

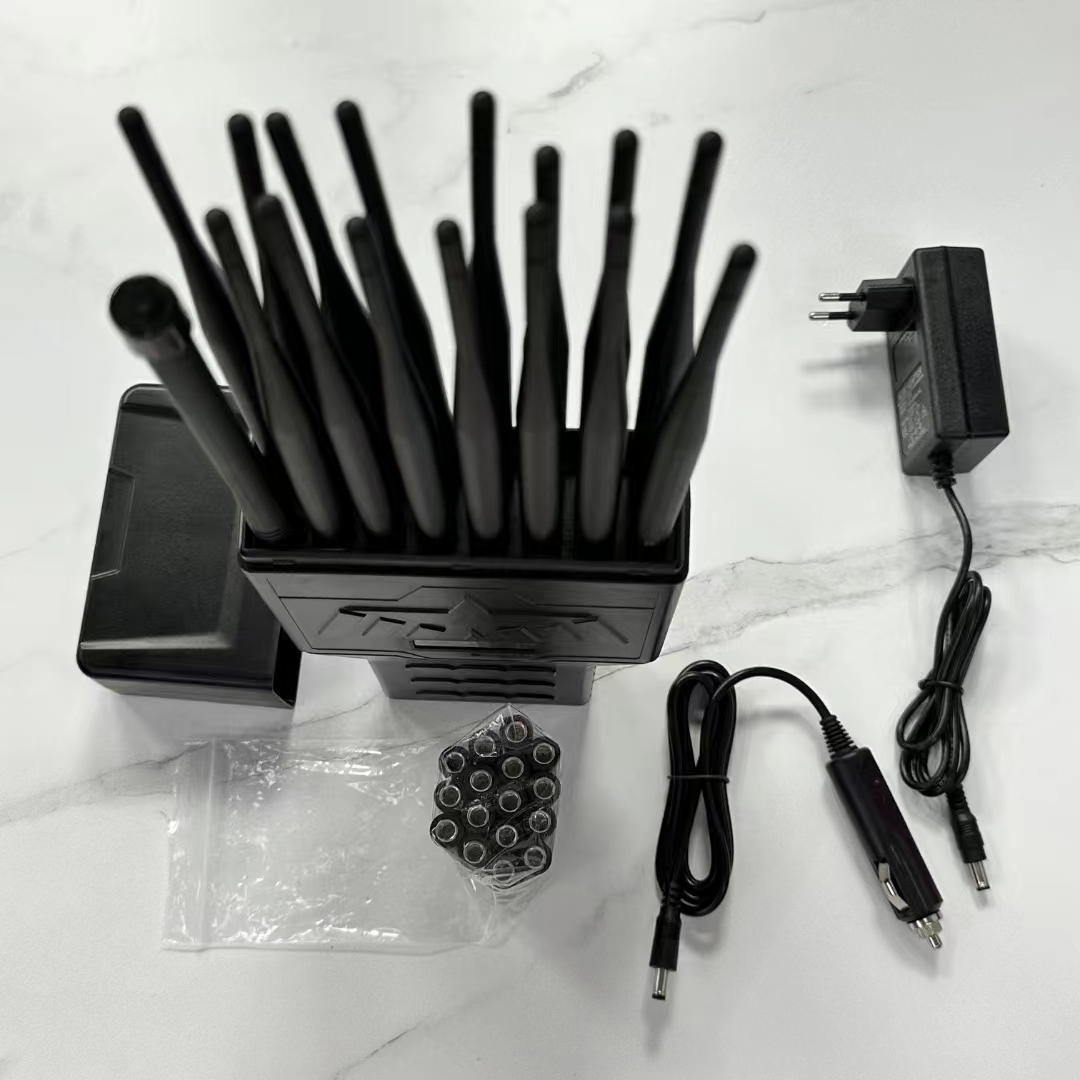

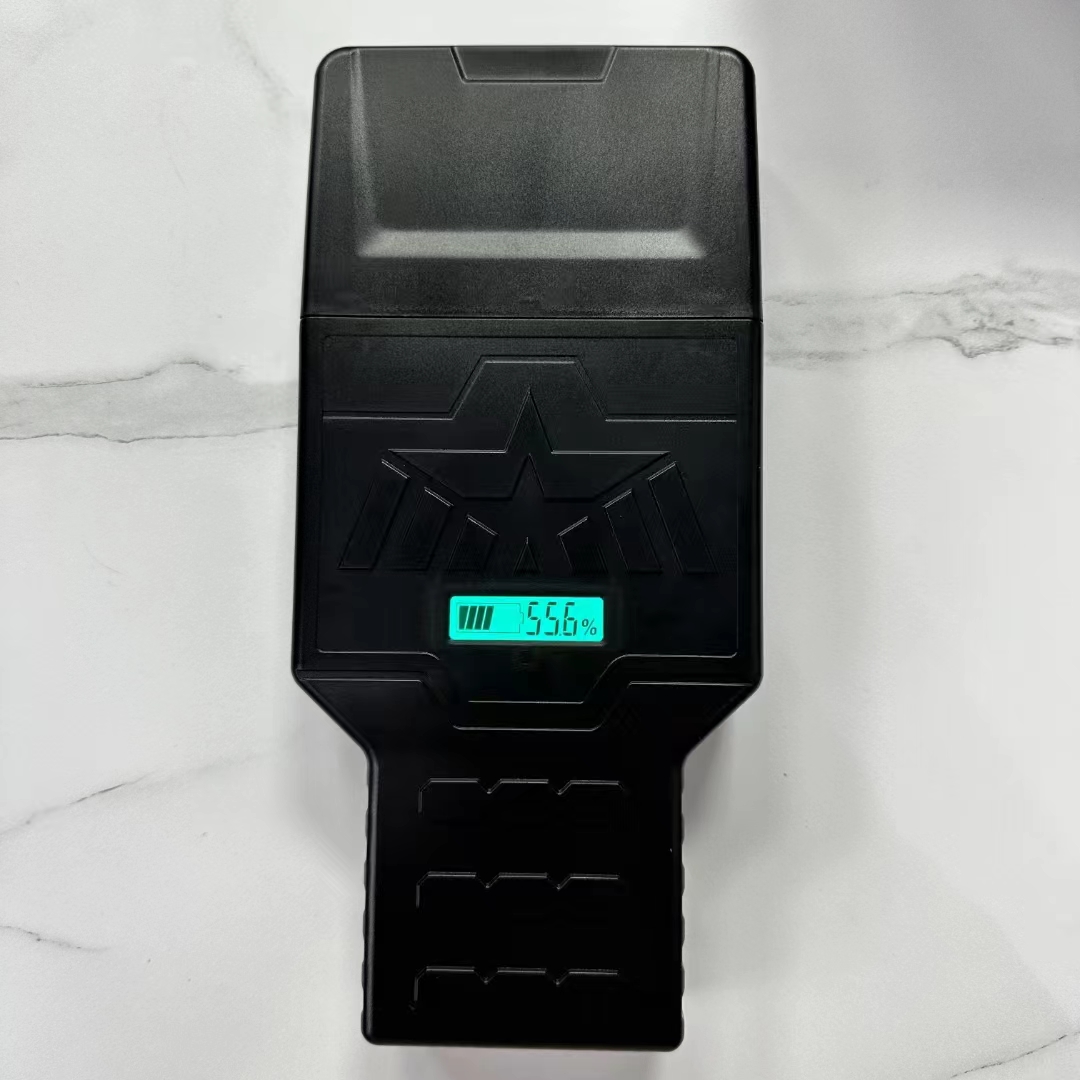

16CH 4G 5G GPS UHF VHF Jammer

Model：AB- PB-H16D

BASIC INFO

Police & Millitary Jammer Anti-Terror Signal blocker

Channels : 16

Output power : 1W each channel
Coverage : 50-100 sq meters ( covering distance ,depends on the area’s signal strength ) , radius 1-20meters

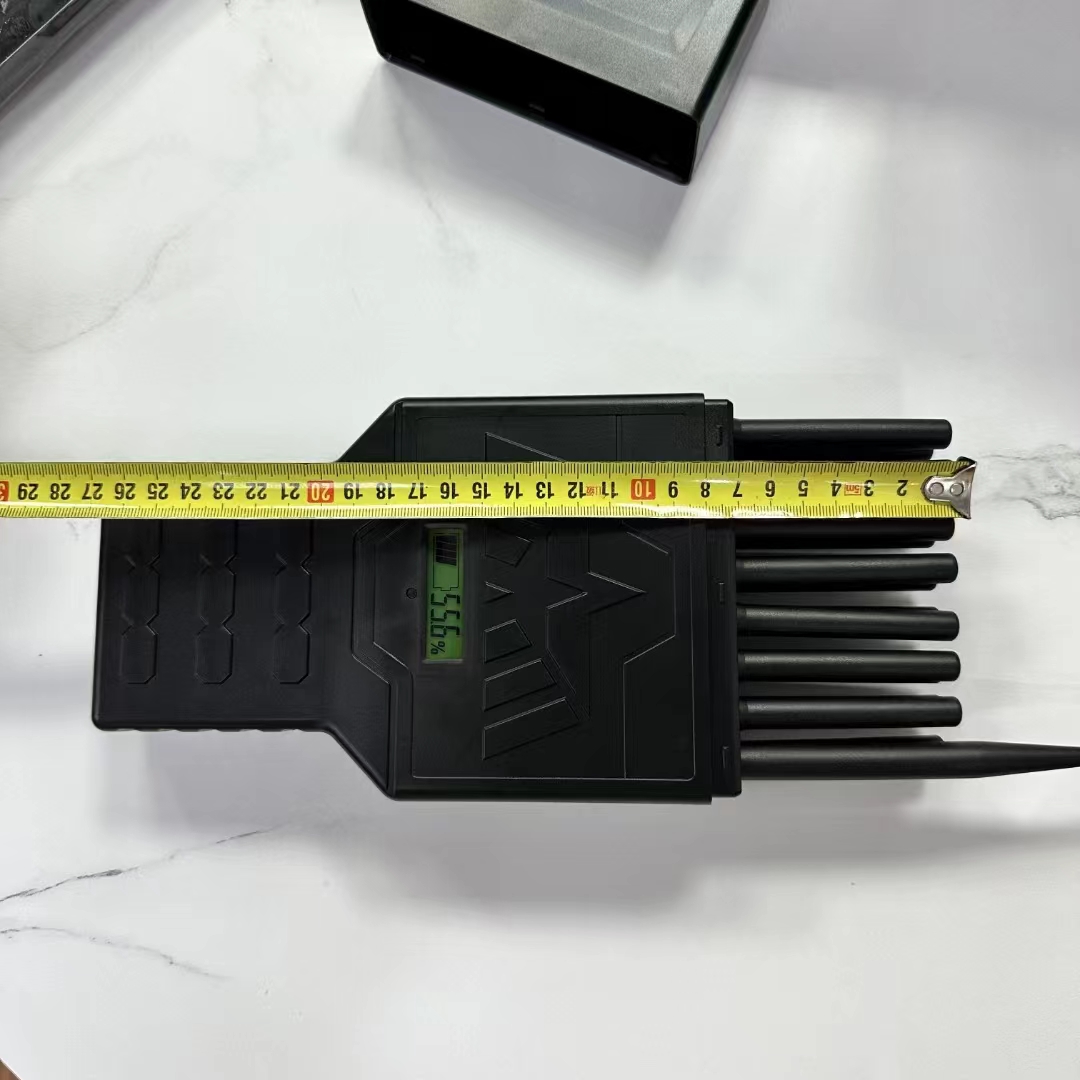

Body Size :
Antenna size:
Overall weight :
ambient temperature : -40~55C
relative humidity : 35~85%

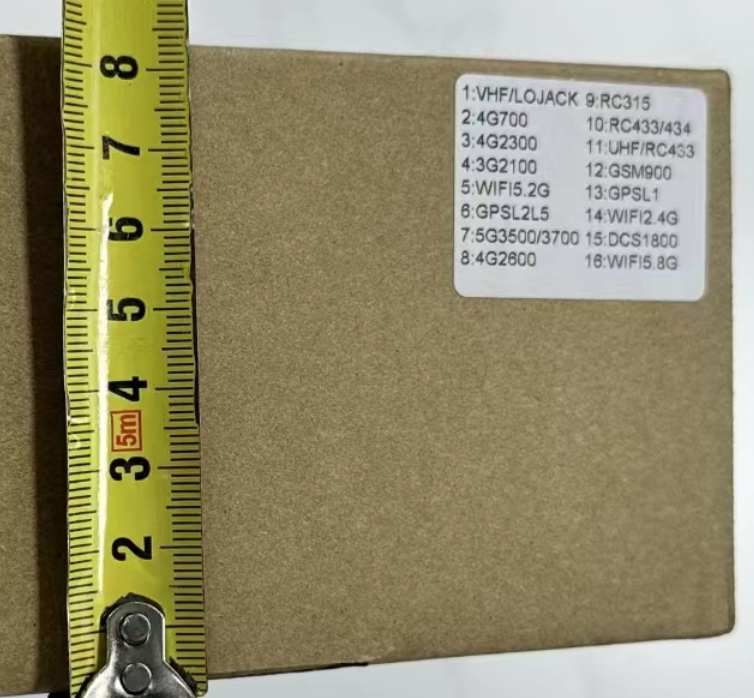

Frequency 1 by default :

Channel 1, VHF LOJACK
Channel 2, 4G 700mHZ
Channel 3, 4G 2:2300-2400MHz
Channel 4, 3G: 2010-2170MHz
Channel 5, 5.2G: 5150-5350MHz
Channel 6, GPS L2 L5
Channel 7, 5G: 350mHZ/3700mHZ
Channel 8, 4G 2600: 2500-2700MHz
Channel 9, RC315
Channel 10, RC433-434
Channel 11, UHF 433 ir433

Channel 12, 2G 900: 870-960MHz

Channel 13, GPS L1: 1560-1610MHz (GPS L1 glonass G1 Beidou B1)

Channel 14, WiFi 2.4G: 2400-2500MHz
Channel 15, 2G+4G DCS1800: 1805-1920MHz

Channel 16, 5.8G: 5725-5850

Frequency 2：

Signal system	Frequency	Power
CDMA&868	851-894MHz	0.7W
GSM&915&LORA	900-960MHz	0.7W
DCS/PCS	1805-1880/1920-2000MHz	0.7W
3G	2110-2180MHz	0.7W
4GLTE Low	698-798/738-821MHz	0.7W
4GLTE High	2496-2690/2570-2690MHz	0.7W
WIFI2.4G/4G2300	2400-2485/2300-2485MHz	0.7W
WIFI5.2G	5100-5500MHz	0.7W
WIFI5.8G	5500-5900MHz	0.7W
GPS&Glonass L1	1560-1610MHz	0.7W
GPSL2L5	1170-1280MHz	0.7W
GPSL3L4/4G1700	1370-1390/1710-1780MHz	0.7W
VHF&LOJACK	135-175MHz	0.7W
UHF&CDMA450	400-470MHz	0.7W
RC433	433MHz	0.7 W
RC315	315MHz	0.7W

Frequency 3：

Signal system	Frequency
5G600	617-698MHz
CDMA/GSM&LORA	851-894 /900-960MHz
PCS	1930-2000MHz
3G	2110-2180MHz
4GLTE Low	698-798MHz
4GLTE High	2500-2690MHz
WIFI2.4G/4G2300	2400-2485/2300-2485MHz
WIFI5.2G	5100-5500MHz
WIFI5.8G	5500-5900MHz
GPS&Glonass L1	1560-1610MHz
GPSL2L5	1170-1280MHz
5G3500	3400-3600MHz
VHF&LOJACK	135-175MHz
5G3700	3600-3800MHz
RC433	433MHz
RC315	315MHz

Frequency 4：

Signal system	Frequency
5G1400	1427-1518MHz
CDMA/GSM&LORA	851-894 /900-960MHz
DCS	1805-1880MHz
3G	2110-2180MHz
4GLTE Low	738-821MHz
4GLTE High	2570-2690MHz
WIFI2.4G/4G2300	2400-2485/2300-2485MHz
WIFI5.2G	5100-5500MHz
WIFI5.8G	5500-5900MHz
GPS&Glonass L1	1560-1610MHz
GPSL2L5	1170-1280MHz
5G3500	3400-3600MHz
VHF&LOJACK	135-175MHz
5G3700	3600-3800MHz
RC433	433MHz
RC315	315MHz
